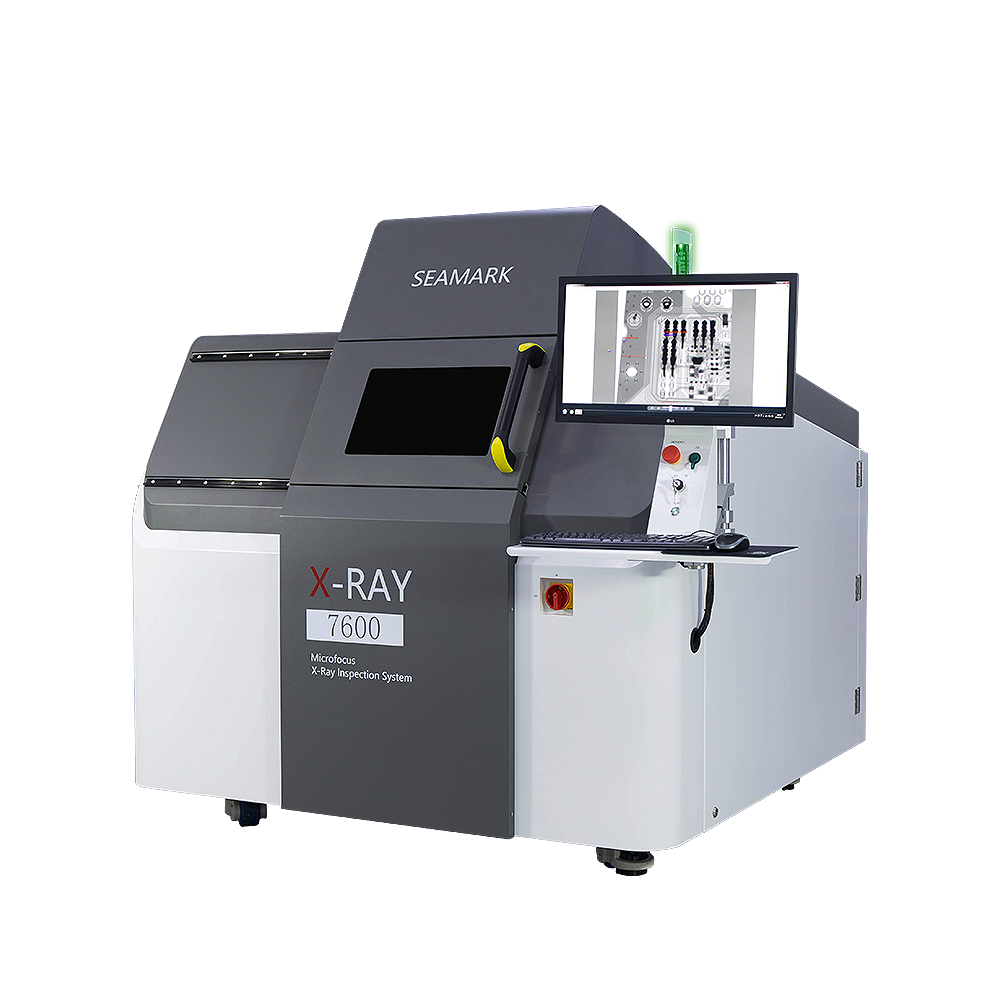

Powerful and High-End precision Micro-Focus Inspection X-RAY
With multi-angle and multi-directional photography, as well as 360° rotation and 60° tilt for 3D photography, blind spots are eliminated to get the best vision inspection.
Features
- 60° tilt for observation
- Optional 2.5D module for upgrade
- High-Definition Inspection Images (offset/soldering/voids/cold soldering/wire bonding)
- 360° platform rotation
- Color image navigation and mapping navigation
- Optional picture stitching function is supported
Specifications
X-ray Tube
| Tube Type | Reflective Sealed Micro-Focus X-ray Tube |
| Voltage Range | 40 - 90 KV / 40-130KV |
| Electricity Range | 10 - 200 uA / 10 - 300uA |
| Max Output Power | 8W / 39W |
| Micro Focus Size | 5 - 15 um |
Flat Panel Detector
| Detector Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536 x 1536 |
| Field of View | 130 x 130 mm |
| Resolution | 5.8 Lp/mm |
| Frame (1 x 1) | 20 fps |
| AD Conversion Bit | 16 bits |
Equipment
| Dimensions | 1700 L x 1770 W x 1800 H mm |
| Input Power | 220V 10A 50-60Hz |
| Platform Size | 510 x 510 mm |
| Operation System | Industrial Computer WIN10 64Bit |
| Net Weight | 2050kg |
