Hakko Products

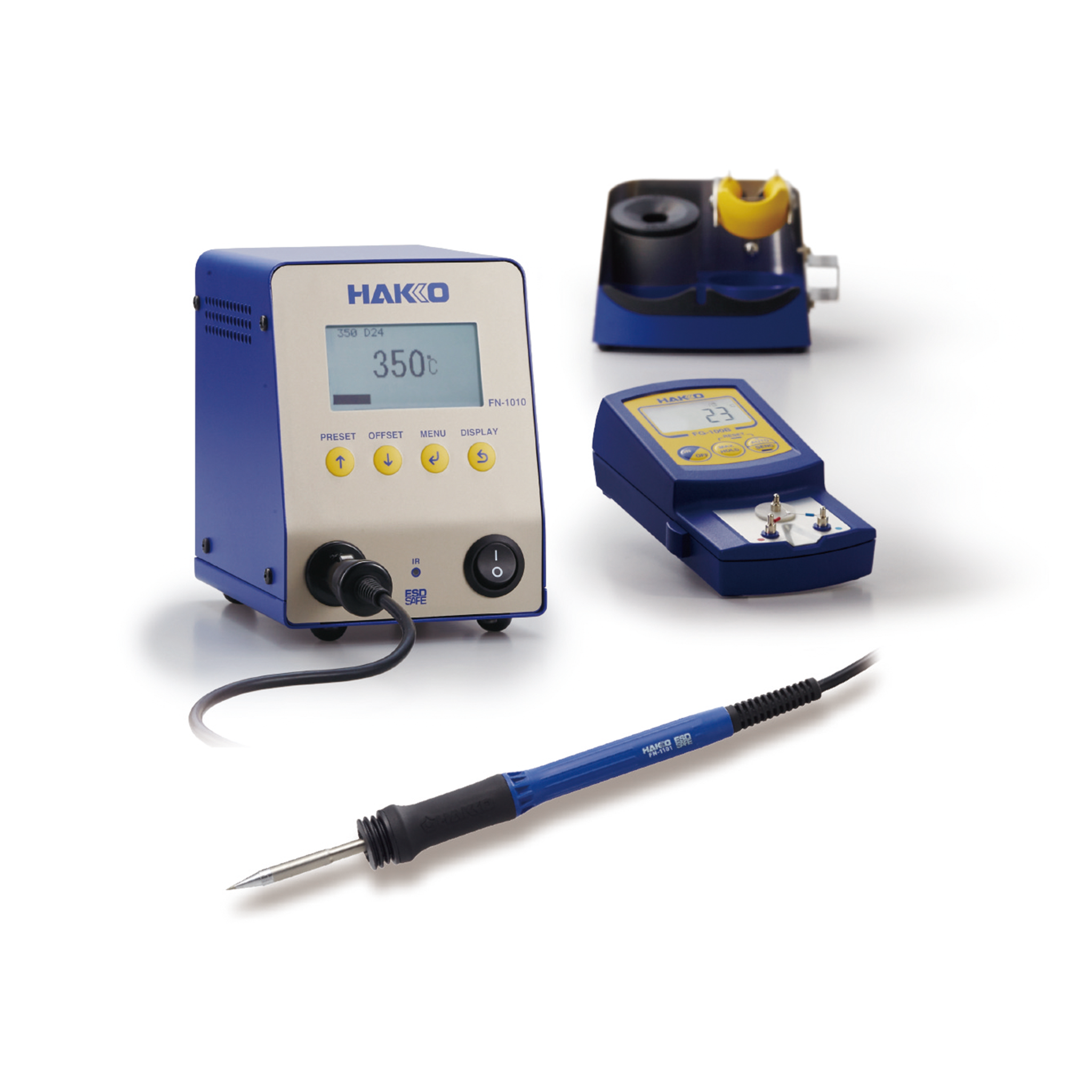

FN-1010 Iot Capable Soldering Station 230V

Regular price $2,680.00 SGD
Regular price Sale price $2,680.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

Availability: Pre-Order | Lead Time: 8-12 Weeks

[This is a pre-order product and will take 6-8 weeks to arrive. Kindly view pre-order FAQs before purchasing.]

  • Click here to shop compatible tips for FN-1010.
  • Click here to shop compatible nozzle assemblies (for FN-1102)
  • NOTE: neither soldering tip nor nozzle assembly is included. Please purchase a "T36 Series" soldering tip and a compatible nozzle assembly onto the tip separately
Features
  • Improve traceability
  • Minimize human error
  • Optimize soldering conditions
  • IoT capable

Enables human error-free temperature control and traceability of manual soldering process

The FN-1010 and FG-100B are equipped with communication function.

"Process control" and "Traceability" can be established through daily manual soldering operation.

Optimization of soldering conditions is now possible based on a variety of information in daily soldering process collected by FN-1010.

Information to be collected
The following information can be collected by memory chip in T36 series tip and saved in a computer through a soldering station.

  • Tip shape
  • Tip Serial number
  • Number of loads
  • Total time of power supplied
  • Load sensitivity
  • Type of solder alloy (Lead-Free / Lead)
  • Count alarm

Automatic calibration/off-set can be completed once measurement result is sent through infrared.

  • Human error-free "tip temperature calibration " and "off-set" can be established through daily manual soldering process.
  • Results of measurement/calibration/off-set can be recorded automatically.

Visualize energy supplied during soldering

  • It is now possible to visualize invisible energy supplied from T36 series tip during soldering.
  • And that makes it possible to control factors of soldering, which were impossible before.

HAKKO FN-1010 Soldering Station

Real-time work status on the LCD screen

Improved button operation

  • Quick access to "Preset temperatures" and "Off-set mode" with one push.

Notification of alarm with sound and vibration

  • Alarm can be notified with vibration in a noisy environment.

Free fall detection function

  • Built-in motion sensor detects free fall and cuts the power. It can prevent burning floor, a fire and other accident with the heat.

Tip cleaner with solder ball preventive design

  • Solder ball during tip cleaning can be reduced by 99% with devised cleaner designs such as smaller aperture, and set angle as well as position.

HAKKO FG-100B Thermometer

Eliminate human error in manual recording of measurement result by using FG-100B

  • Human errors in manual recording process and time for recording can be eliminated by sending measurement result from FG-100B to FN-1010.
  • Minimize individual difference in timing of completion of measurement and reading measurement result
Specifications

Model No. FN-1010

  • Power consumption: 100W
  • Temperature range: 50 to 450ºC
  • Temperature stability: ±3ºC

Station

  • Output voltage: AC 21V
  • Dimensions: 104(W) × 138(H) × 152(D) mm
  • Weight: 1.9kg

Soldering Iron

  • Power consumption: 95W (21V)
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: Composite heater
  • Cord length: 1.2m
  • Total length: 180mm (with 2.4D tip)
  • Weight: 32g (with 2.4D tip)

* Total length and weight (w/o cord)

A soldering tip is not included with this product. The desired tips should be purchased separately.

Packing List
  1. Station
  2. Handpiece (FN-1101)
  3. Tip cleaner (FT-401, with cleaning wire)
  4. Power cord
  5. Iron holder (FH-210)
  6. Instruction manual
Accessories

Soldering Tip

T36 Series
Shape BC/C
  • T36-BC1
  • T36-BC2
  • T36-BC3
  • T36-C1
  • T36-C4
Shape B
  • T36-B
  • T36-B2
  • T36-BL
Shape D
  • T36-D08
  • T36-D16
  • T36-D24
  • T36-D52
  • T36-DL32
Shape I
  • T36-I
  • T36-ILS
Shape J
  • T36-J02
  • T36-JS02
Shape K
  • T36-K
Parts

Replacement Parts

Name

Specifications

FN1101-81

Soldering iron FN-1101, 95W (21V)

B5217

Nipple with Sealing valve

B5218

Sealing valve

FH210-81

Iron holder FH-210

FT401-81

Tip cleaner FT-401

A1561

Cleaning wire for FH-800

B5213

Solder Scatterproof Cover

B5214

Tip removing attachment

B5216

Iron receptacle with screw

B5215

Holder for iron receptacle

B2791

Retaining clip

Optional Parts

Part No.

Name

B5210

Interface card, USB type with cable

B5211

Interface card, RS232C type with cable

B5212

Interface card, LAN type

B2300

Heat resistant pad

FN1102-81

Nitrogen Soldering iron FN-1102, 95W (21V)
