- High powered 150W soldering iron with high heat capacity
- Best suited for soldering of power-supply boards, heat sinks and shield cases
- Applicable also for multilayer boards with micro components
- Selectable soldering iron for N2 System as usage at your option
Please refer to the user manual for more tips!

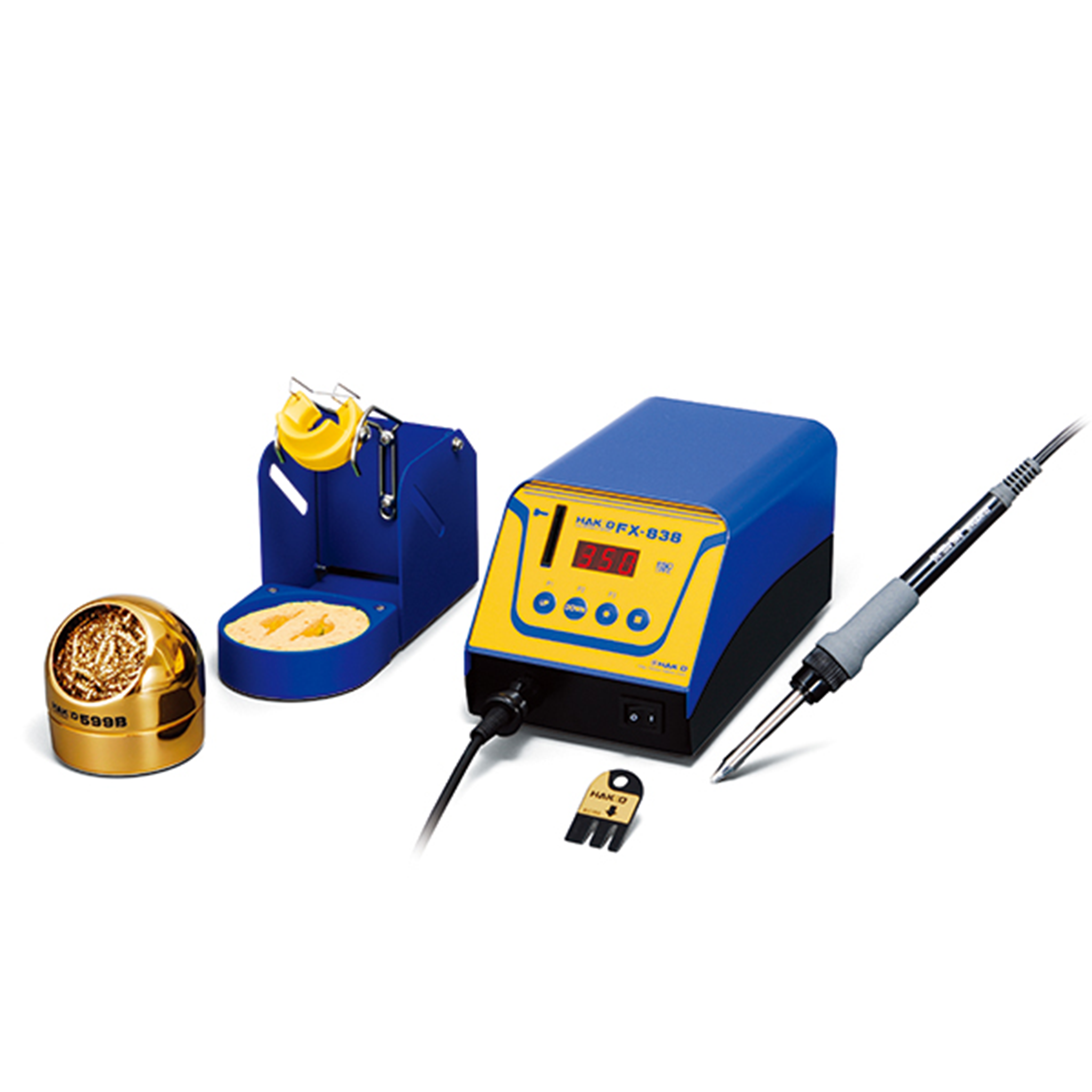

Packing List
| Soldering Station | FX-838 |
| Soldering Iron | FX-8301 |
| Soldering Tip | Not Included (T20 Series) |
| Control Card | B2388 |
| Power Cord | B2425 |
| Iron Holder (Cleaning Sponge and 599B) | FH-200, A1519, 599B-02 |
| Connecting Cable | B3253 |
| Heat Resistant Pad | B2300 |
| Instruction Manual | - |
*Soldering tip is not included. The tips (T20 series) of desired shape should be purchased separately. Click here to shop compatible soldering tips for FX-838
Features
High Power 150W Soldering Station for various applications from large to fine components.
- Great thermal recovery improves the soldering environment.
- It allows soldering at lower set temperatures.
- It can shorten the soldering working time, which minimize concern about the influence of heat on components and tip life.
- It is suitable not only for high-power required working condition such as soldering multilayer boards or shield cases but also for microsoldering.
Operate at maximum temperature of 500 degrees
Soldering power-supply boards easily with the 150W high power hand piece.
High power with low voltage safety design
This unit has not only high power but also low output voltage (27V) , which is lower than the world safety output voltage of 30V.
Easy to replace tips
Simply loosen the nipple slightly, remove the tip, insert a new tip and tighten the nipple.
Cartridge style integrated heater improves thermal conductivity of the tips
The T20 series soldering tips are available in 20 different shape as replacement, some of which are suitable for fine components.
Temperature preset mode saves time and effort
Input three frequently-used temperatures in advance and recall them with one push of a button. It saves the troublesome process of setting condition, tailored to the tip-shape, component and work.
N2 System
Combination of optional handpiece allows use of N2 system.
Combination Example
| Name | Remarks |
|
HAKKO FX-838 Station
|
With Control card, Heat resistant pad, Power cord, Connecting cable and Instruction manual. |
| Iron holder | With HAKKO 599B and cleaning sponge |
|
HAKKO FX-8302
|
N2 Soldering Iron |
| T20 Series Tip | Select the tip appropriate for work. |
| Nozzle Assembly |
Select the nozzle assembly applicable to the tip. |
| N2 Generator | With Racks for Station Air tube Outer diameter: 6mm It can be placed perpendicularly or horizontally. |
|
HAKKO FX-791
|
N2 Flow Meter |
| The others | * The others are not provided by HAKKO |
Specification
Model No. FX-838
- Power consumption: 158W
- Temperature range: 200 to 500ºC
- Temperature stability: ±5ºC at idle temperature
Station
- Output voltage: AC 27V
- Dimensions: 110(W)×110(H)×205(D)mm
- Weight: 3.2kg
Soldering Iron
- Power consumption: 150W (27V)
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Ceramic heater
- Cord length: 1.2m
- Total length: 175mm (with 2.4D tip)
- Weight: 31g (with 2.4D tip)
* Total length and weight (w/o cord)
Accessories
For the HAKKO FX-838, soldering iron tips are not supplied as accessories. Please separately purchase "T20 Series" soldering iron tips.
Soldering Tip
| T20 Series | |
| Shape BCM/CM |
|
| Shape BC/C |
|
| Shape B |
|
| Shape D |
|
| Shape J |
|
| Shape K |
|
| Shape Concave |
|
Parts
Replacement Parts
|
Part No. |
Product Name |
|
HAKKO 599B tip cleaner |
|
|
Iron holder (cleaning sponge) with power-save function |
|
|
Soldering iron FX-8301, 150W (27V) |
|
|
Connecting cable |
|
|
Control card |
|
|
Heat resistant pad |
|
|
Iron holder (cleaning sponge) with power-save function |
|
|
Cleaning sponge (yellow) |
|
|
A1536 |
Cleaning sponge (green) |
|
Nipple |
|
|
Cleaning wire |
Optional Parts
|
Part No. |
Name |
|
Nitrogen Soldering iron FX-8302, 150W (27V), for N2 soldering |
